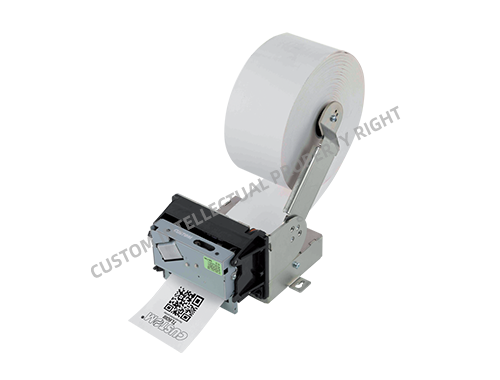

Kiosk Printer – TL60
CHARACTERISTICS
Extremely compact: just 77mm high
Suitable for tough environments, down to -20°C up to +70°C
Multi-position paper roll holder: lower, top or rear position
Paper roll diameter up to 80 mm
Metal structure that provides increased rigidity for the printing mechanism and facilitates motor heat dissipation, resulting in improved stability and reliability over time
Improved distribution of the head-roller pressure, resulting in improved printing quality
APPLICATIONS:
Self-service kiosks
Banking machines
Gaming machines
Parking pay terminals
Queue management systems
Vending machines
SOFTWARE:Remote status monitor
PrinterSet
CustomPowerTool
TECHNICAL SHEET
Printing Method Thermal with fixed head
Number of dots 8 dots/mm
Columns 24 - 32 - 44
Resolution 203 DPI
Printing (mm/sec) 140mm/sec
Character set PC437, PC850, PC860, PC863, PC865, PC858, PC866, VISCII (Option 0104: PC437, PC850, PC860, PC863, PC865, PC858, GB2312) Printing Format Normal, height and width from 1 to 4, bold, negative, underlined, script
Printing Direction Straight, 180°
Paper width 60 mm
Paper weight from 55 to 80 g/m2
Paper thickness from 63 to 85 μm
Roll Dimension max 80mm
Sensors Head temperature, paper presence
Emulation Custom/POS, TGH
Interfaces RS232 + USB
Data Buffer 2 kB
Flash Memory 1 MB
Graphic Memory 2 logos 448x584 dot
Drivers Windows, Linux
Software Tools Status Monitor, PrinterSet, CustomPowerTool
Power supply 24V +/- 10%
Medium consumption 0.65A (12,5% dots on)
MTBF 172.000 hours (electronic board )
Head Life 50Km/100M pulses
MCBF 1,000.000 cuts
Operating temperature -20°C + 70°C
Dimensions 130(L)x105(W)x77(H)mm
Weight 0.800 Kg
